PNY GeForce RTX 5070 Ti OC 16G Graphics Card
Description
Specification
|
Architecture |
Blackwell |
|
CUDA® Cores |
8,960 |
|
Clock Speed |
2.3 GHz |
|
Memory Speed (Gbps) |
28 |
|
Memory Size |
16GB GDDR7 |
|
Memory Interface |
256-bit |
|
Memory Bandwidth (GB/sec) |
Up to 896 |
|
TDP |
300 W |
|
NVLink |
Not Supported |
|

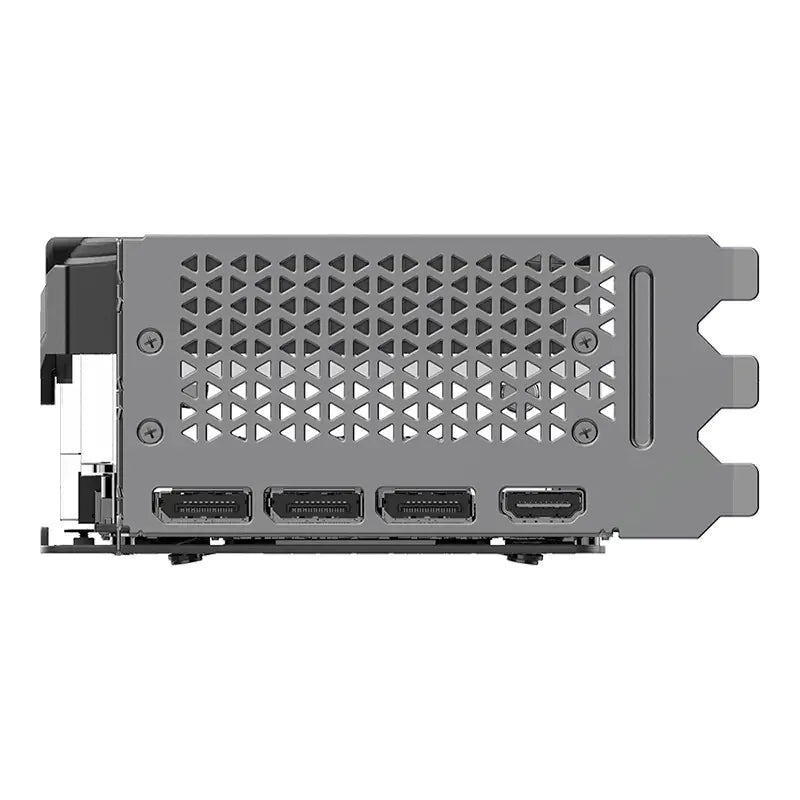

Outputs |
DisplayPort 2.1b (x3), HDMI® 2.1b |
|
Multi-Screen |
4 |
|
Resolution |
4K at 480Hz or 8K at 165Hz with DSC*
* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz |
|
Power Input |
16-pin (One 16-pin to Three 8-pin) |
|
Bus Type |
PCI-Express 5.0 x16 |
|
Card Dimensions |
11.80" x 4.73" x2.35"; 2.98 Slot |
|
System Requirements |
PCI Express-compliant motherboard with one 2.98-width x16 graphics slot Three 8-pin supplementary power connectors Total graphics power 300 W Required system power 750 W* Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit Internet connection*
* Power requirements can be different depending on system configuration. * Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install. |
