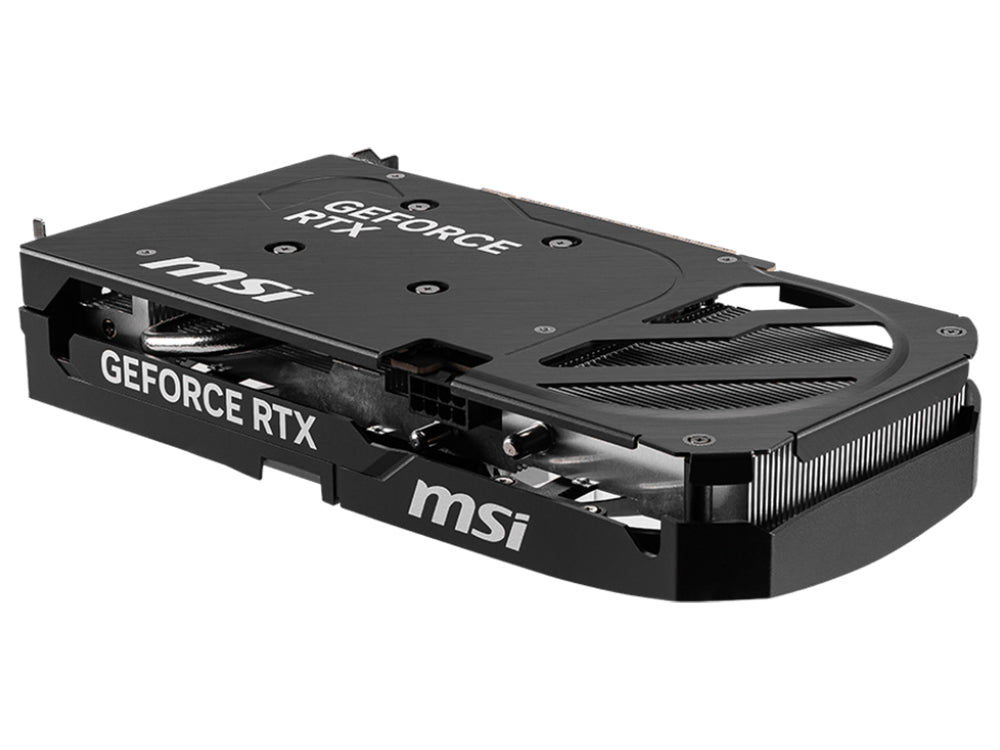

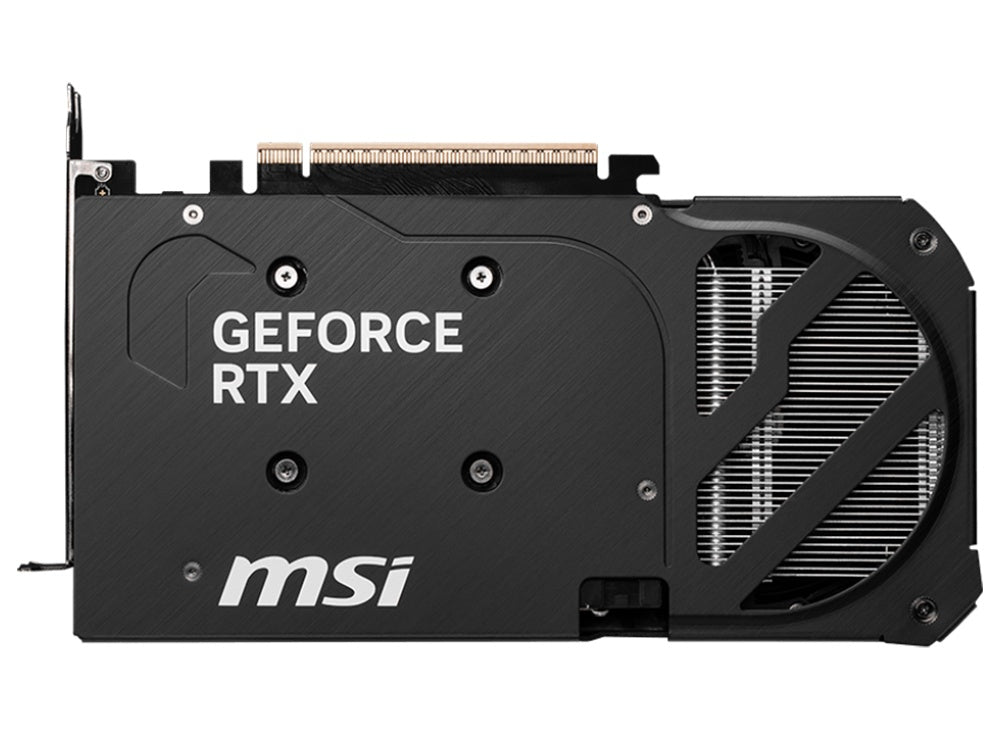

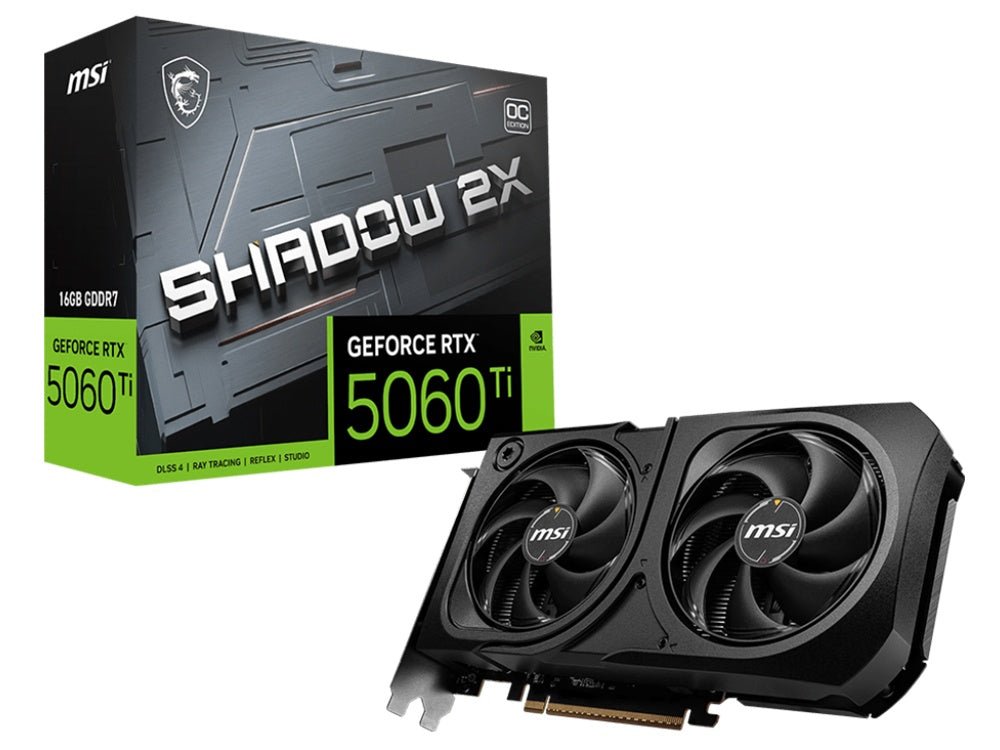

MSI GeForce Shadow 2X OC Plus RTX 5060 Ti 16GB GDDR7 Graphics Card
Product description
Redefine mid-range dominance with the MSI GeForce RTX 5060 Ti Shadow 2X OC Plus, a meticulously tuned graphics card designed for enduring 1440p performance. This "Plus" edition elevates the standard formula by doubling the video buffer to a massive 16GB of ultra-rapid GDDR7 memory, ensuring immunity against texture bottlenecks in future AAA titles. Built on the Blackwell architecture, it leverages DLSS 4 frame generation to deliver silky-smooth visuals without compromising responsiveness. We have selected this model for its efficient Shadow 2X cooling system, which employs TORX Fan 5.0 technology and Zero Frozr mechanics to remain silent during light workloads. With a compact dual-slot footprint and factory-overclocked core speeds, this component is the ultimate upgrade for gamers seeking premium longevity and ray-tracing prowess.
Specification
| Feature | Specification | Detail |
| GPU Model | NVIDIA® GeForce RTX™ 5060 Ti | Blackwell Architecture (GB206) |
| Video Memory | 16GB GDDR7 | 28 Gbps Effective Speed |
| Memory Bus | 128-bit | High Bandwidth Interface |
| CUDA Cores | 4,608 Units | 4th Gen RT Cores, 5th Gen Tensor Cores |
| Boost Clock | 2617 MHz (Extreme Performance) | Factory Overclocked "Plus" Edition |
| Interface | PCIe Gen 5.0 x16 | Backwards Compatible with Gen 4/3 |

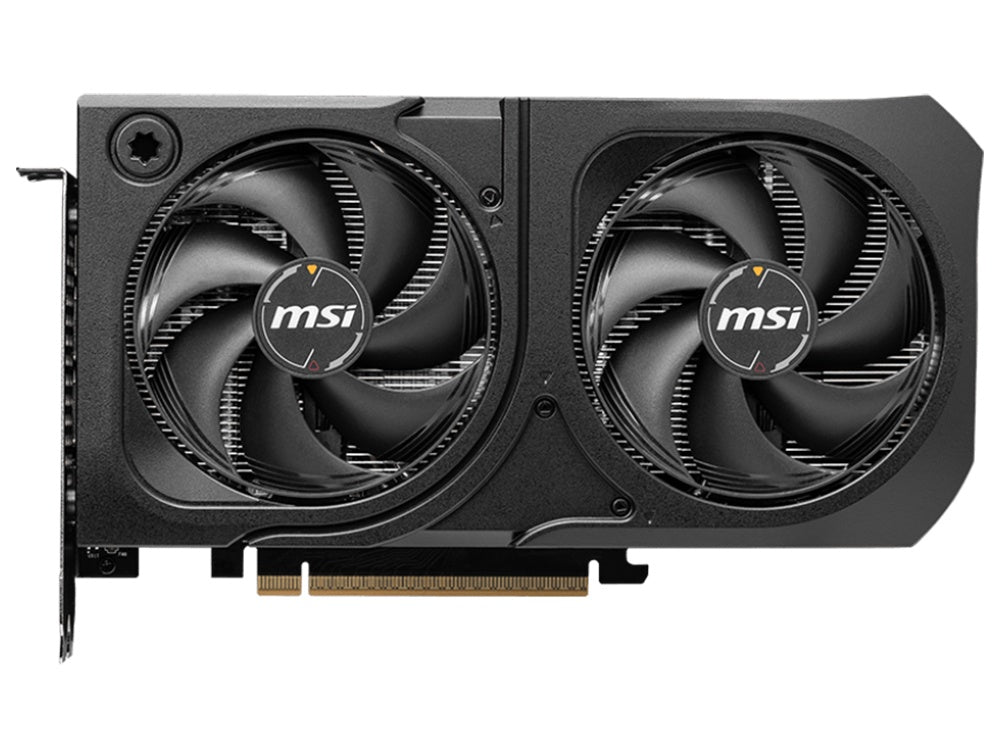

| Cooling System | Shadow 2X (Dual Fan) | TORX Fan 5.0, Zero Frozr Tech |

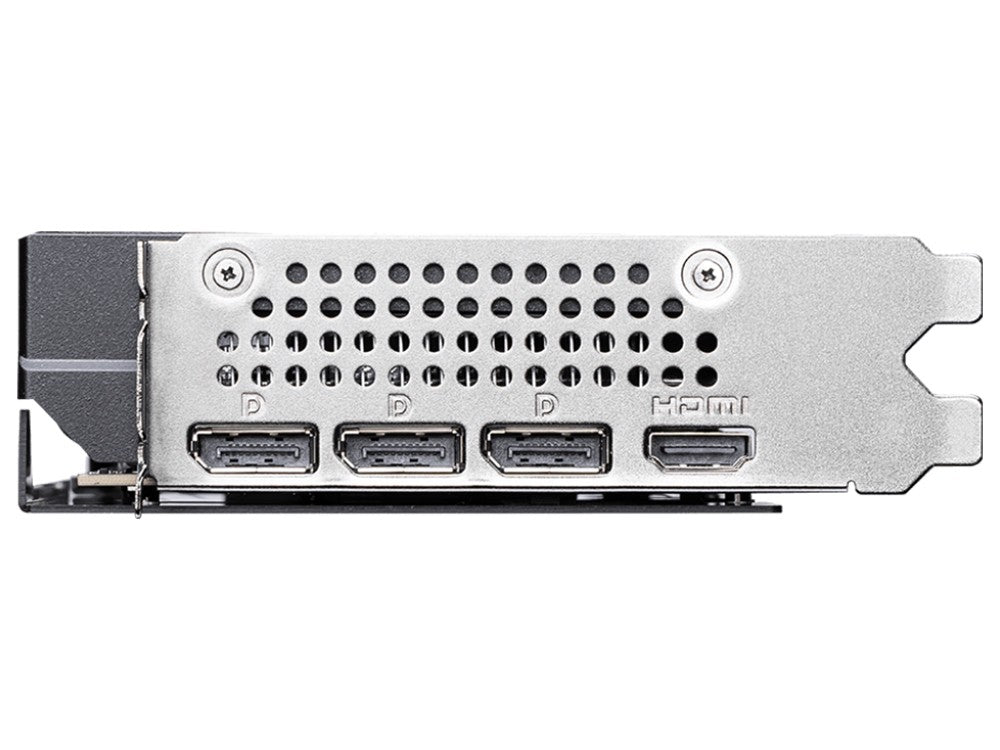

| Output Ports | 3x DisplayPort 2.1b, 1x HDMI 2.1b | Supports 4K@240Hz / 8K@60Hz |
| Power Consumption | 180W TDP | Efficient Performance Per Watt |
| Power Connectors | 1x 8-pin PCI-E | Standard Connector (No Adapter Needed) |
| Dimensions | 227mm x 126mm x 41mm | Compact Dual-Slot Design |
| Key Technologies | DLSS 4.0, Reflex, AV1 | AI Frame Generation, Neural Rendering |
