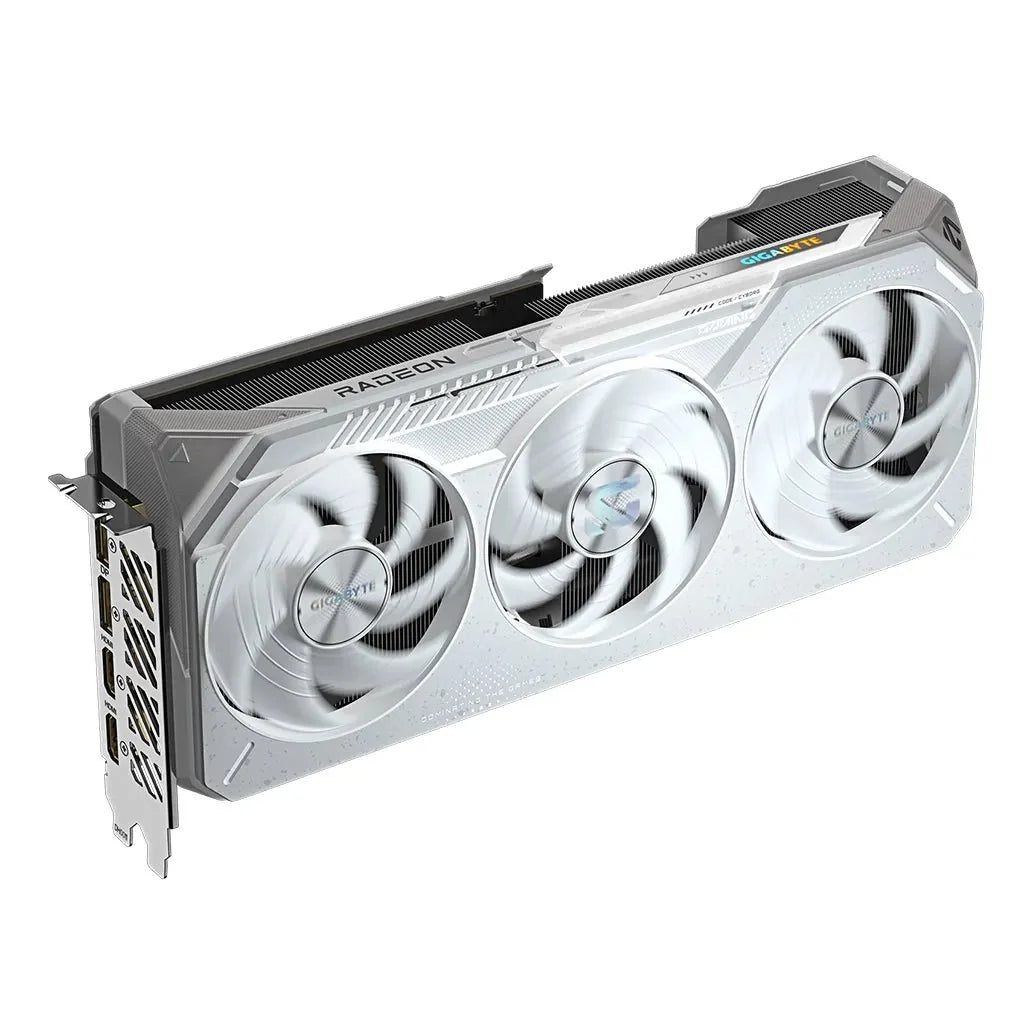

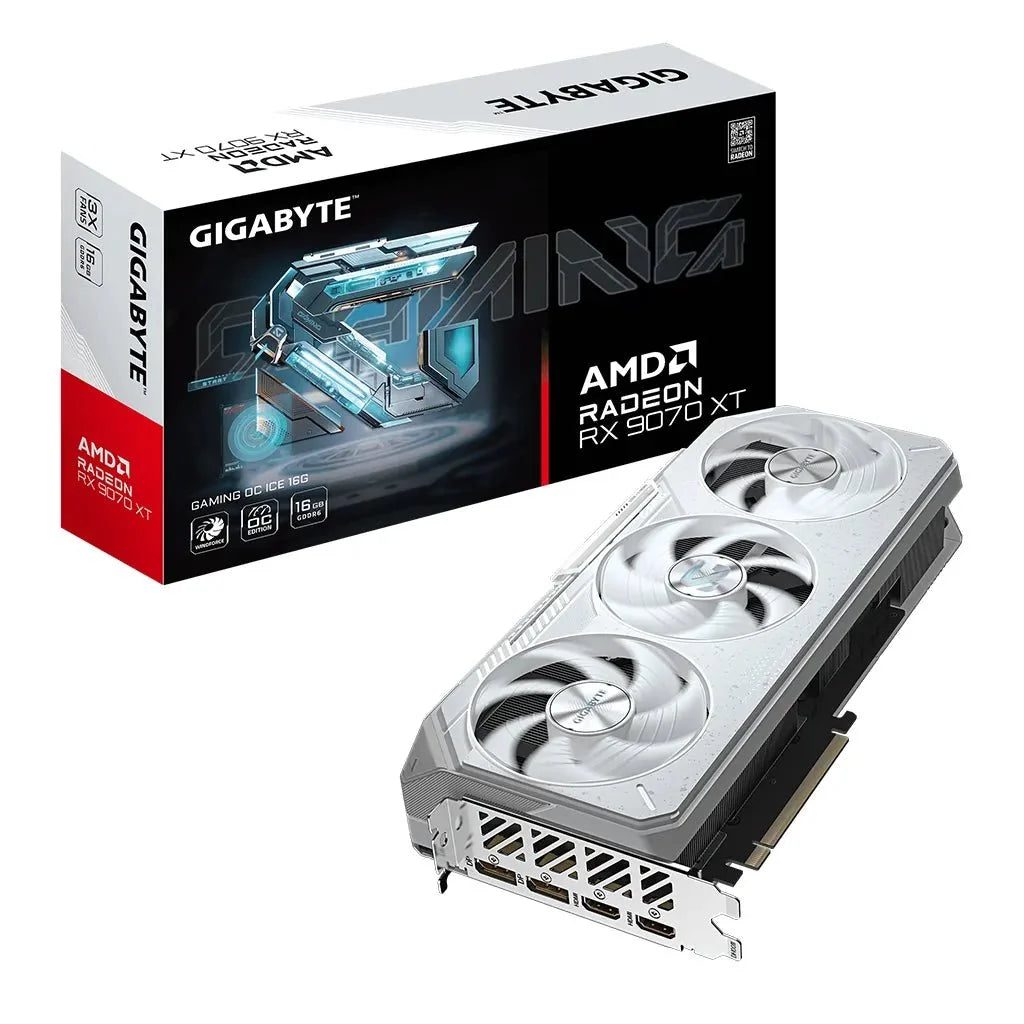

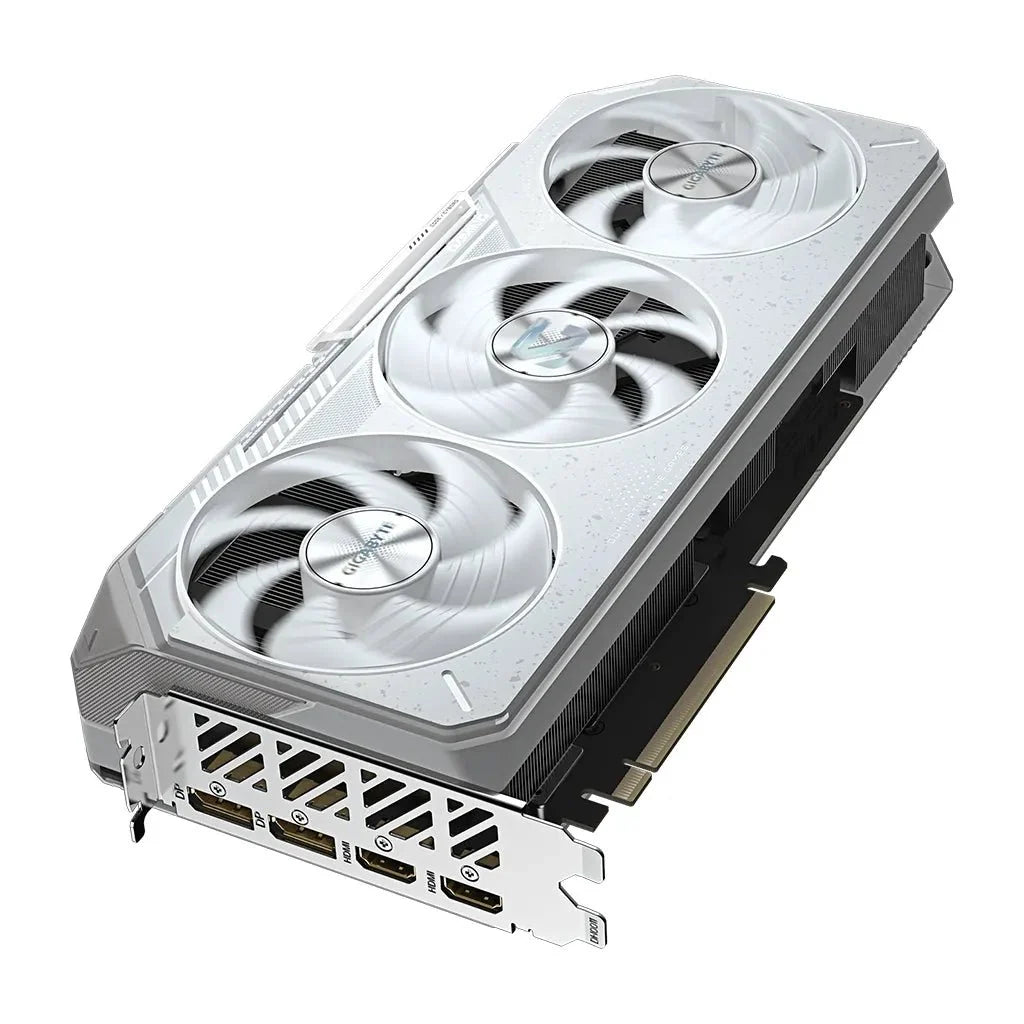

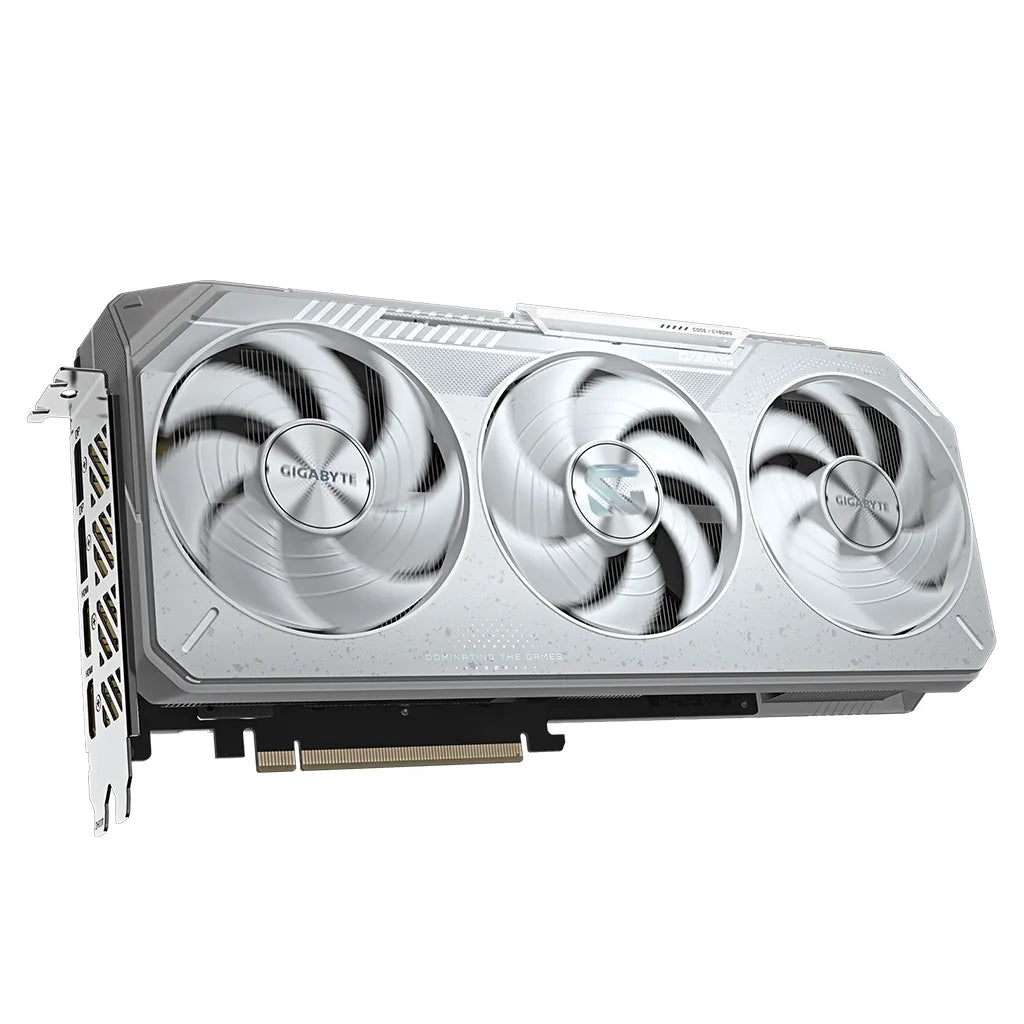

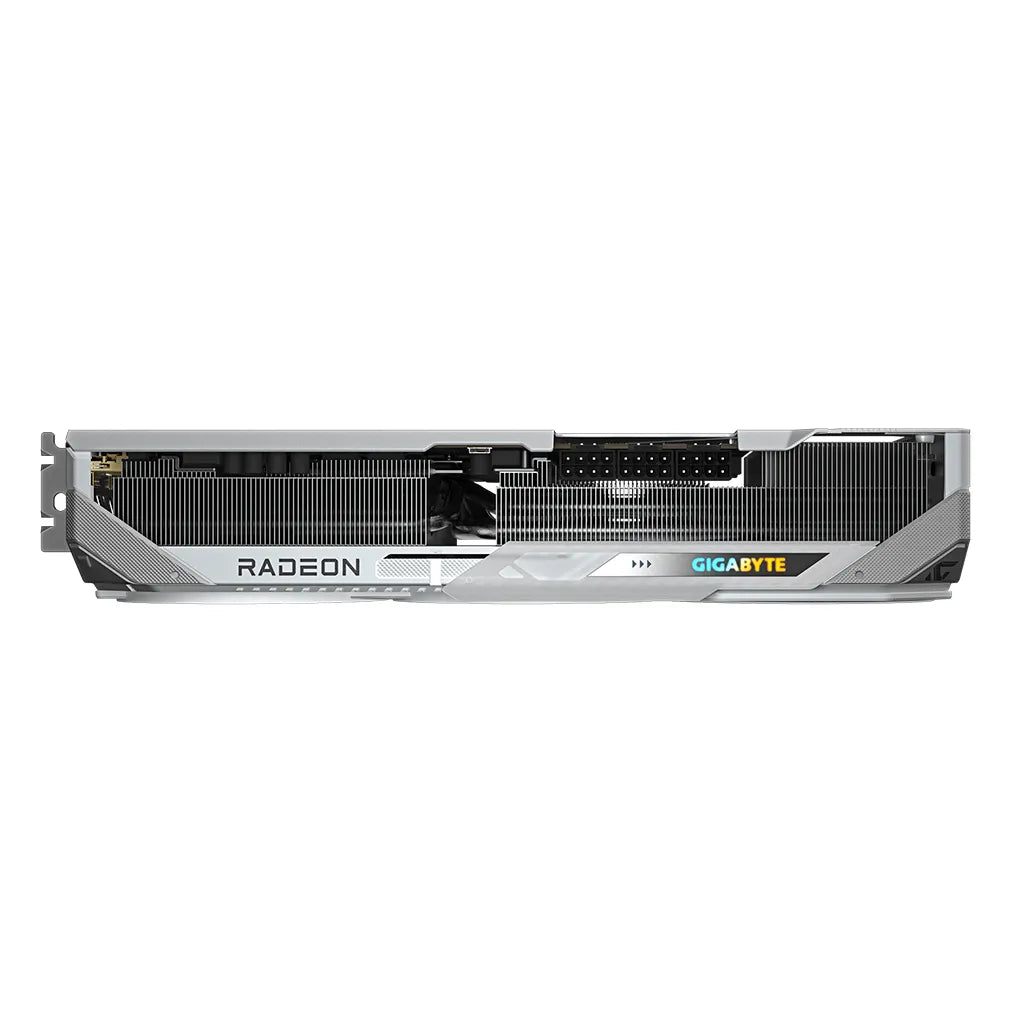

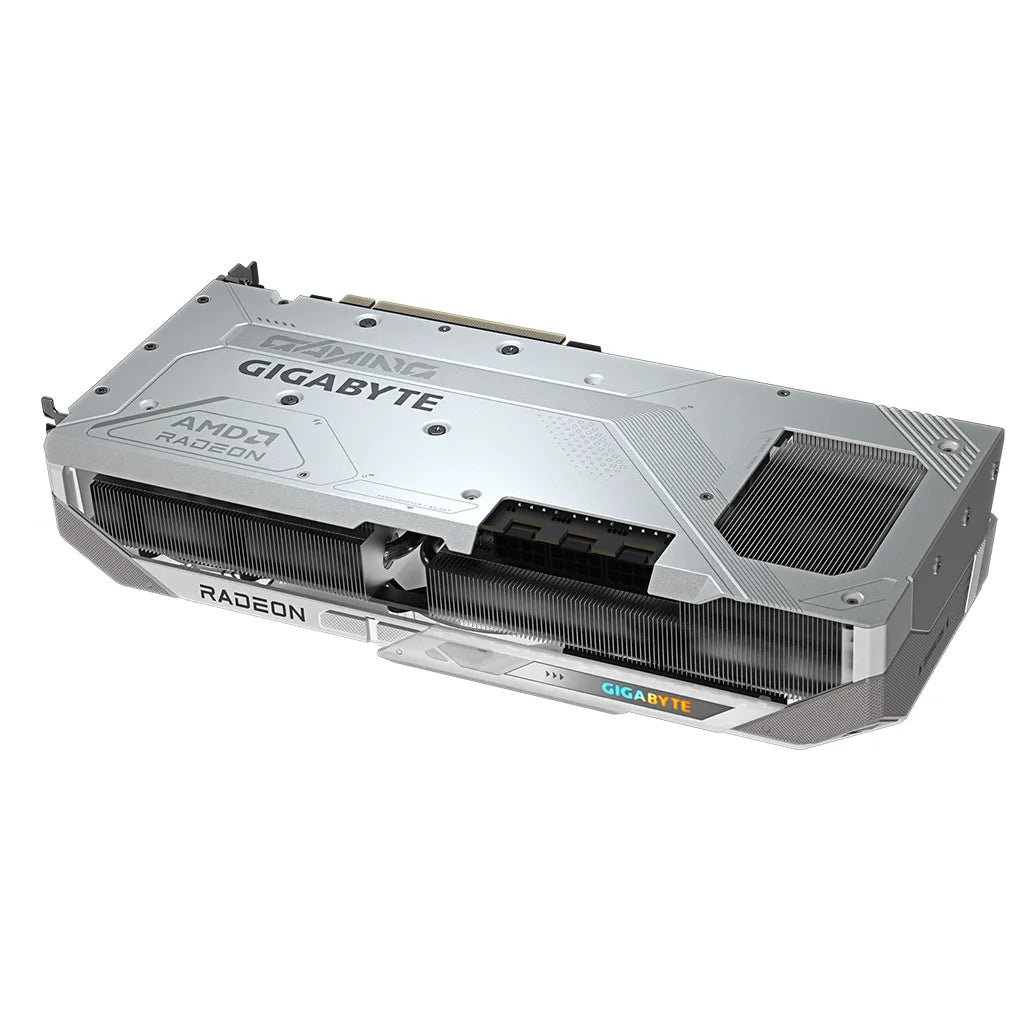

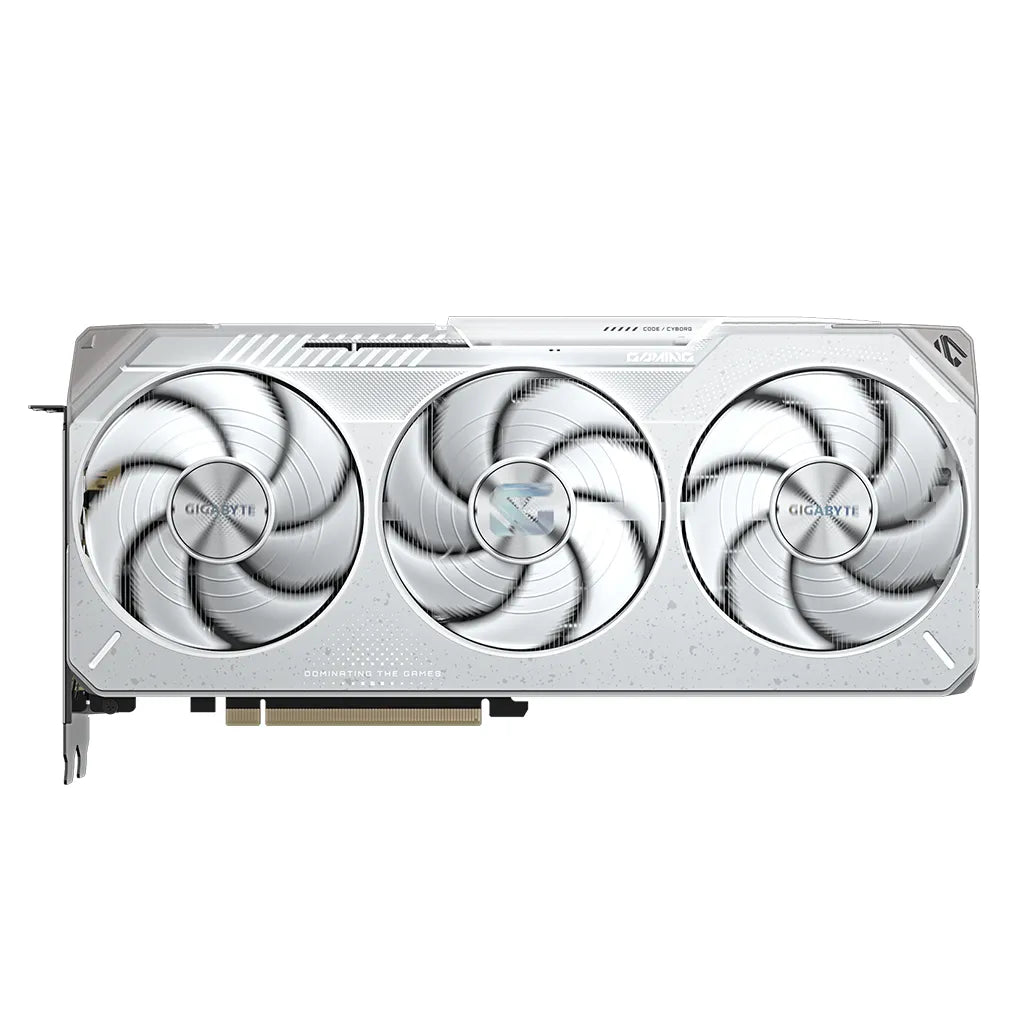

Gigabyte Radeon RX 9070 XT Gaming OC Ice 16G Graphics Card

Core Clock

Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)

Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors

4096

Memory Clock

20 Gbps

Memory Size

16GB

Memory Type

GDDR6

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=288 W=132 H=56 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

850W

Power Connectors

8 pin*3

Output

DisplayPort 2.1a *2

HDMI 2.1b *2

Accessories

Quick guide

Note

“Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
